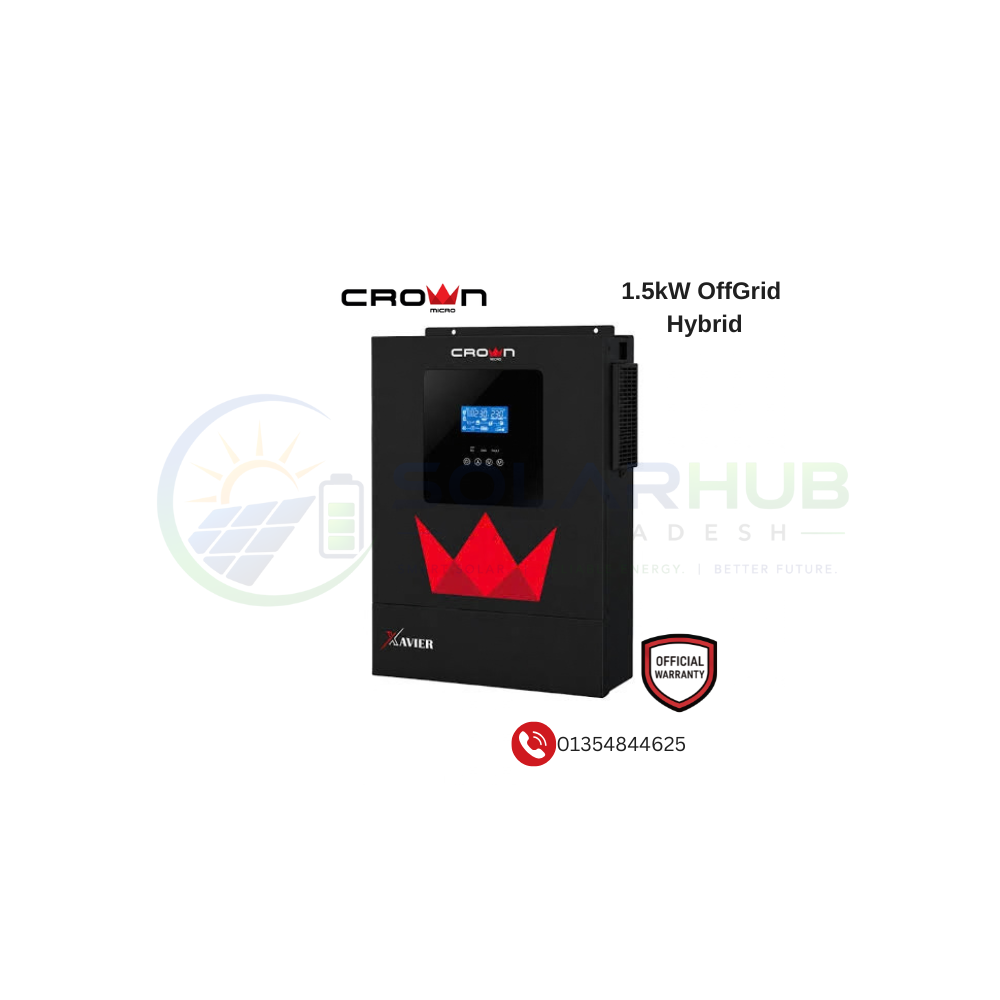

CrownMicro Xavier X-1.5KW-PF1 PV-2500 12V Solar Inverter – Overview

The CrownMicro Xavier X-1.5KW-PF1 (PV-2500) is a single-phase 12V hybrid solar inverter engineered for dependable residential backup, small shops, study desks, and micro-business applications in Bangladesh. Operating at unity power factor (), it delivers 1,500W pure sine wave AC output with a peak surge of 2,400VA. Equipped with a built-in 80A MPPT solar charge controller supporting high-voltage PV arrays up to 400VDC, this inverter features battery-free operation capability, seamless 10 ms UPS handover, and full compatibility with both 12V Lithium-ion and tubular lead-acid batteries.

Key Benefits

True 1,500W Continuous Output (): Unlike conventional 0.8 PF inverters that drop usable capacity, it delivers a full 1,500W of pure sine wave power (1,200W in pure battery-only mode) with a 2,400VA surge tolerance to start ceiling fans, desktop PCs, and entertainment setups.
Runs With or Without Battery: Saves upfront investment costs by powering daytime loads directly using solar panels and grid AC. You can add a 12V battery later for nighttime load-shedding backup.
High-Voltage 400VDC Dual-Window MPPT: A wide 30–400VDC MPPT window allows series connection of large commercial solar panels (300W–600W+), enabling earlier morning start-up and superior low-light energy harvesting.
UPS-Grade 10 ms Transfer Switch: Automatically switches between grid, solar, and battery within 10 ms, preventing desktop PCs, Wi-Fi routers, and security cameras from restarting during blackouts.
Selectable AC Input Windows: Customizable grid input range (170–280 VAC for sensitive personal computers or 90–280 VAC wide band for fluctuating rural home lines) protects appliances from unstable brownouts.
Comprehensive 80A Multi-Source Charging: Delivers up to 80A charging current from solar and up to 80A from AC mains, replenishing depleted 12V battery banks quickly between load-shedding intervals.

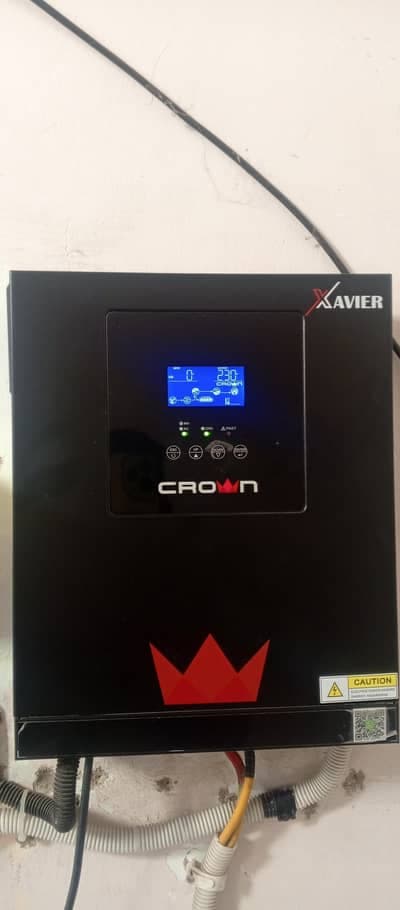

Compact & Lightweight Chassis: Weighing only 6.6 kg in a slim 90 mm wall-hung profile, it mounts neatly on home or office walls without occupying floor space.

Technical Specifications

Specification Category	Parameter	Numerical Value / Detail
Model Information	Brand	CrownMicro
	Model Name	X-1.5KW-PF1 (PV-2500)
	Product Series	Xavier Series
	Rated Continuous Power	1,500 VA / 1,500 W
	Power Factor ()	1.0
AC Input (Grid)	Nominal Input Voltage	230 VAC
	Selectable Voltage Window	170–280 VAC (PC Mode) / 90–280 VAC (Appliance Mode)
	Frequency Range	50 Hz / 60 Hz (Auto-sensing)
AC Output (Inverter)	Output Power (PV + Battery)	1,500 W
	Output Power (Battery Only)	1,200 W
	Voltage Regulation (Battery Mode)	230 VAC
	Surge Capacity	2,400 VA
	Waveform Type	Pure Sine Wave
	Peak Inverter Efficiency	93%
	Transfer Time	10 ms (Personal Computers) / 20 ms (Home Appliances)
Battery Information	Nominal System Voltage	12 VDC
	Floating Charge Voltage	13.5 VDC
	Overcharge Protection Voltage	16.0 VDC
	Supported Battery Chemistries	Lithium-ion () / Tubular / AGM / Gel Lead-acid
Solar Charger (MPPT)	Charger Type	Built-in MPPT
	Maximum PV Array Power	2,500 W
	Max. PV Open-Circuit Voltage ()	400 VDC
	MPPT Operating Voltage Range	30 VDC – 400 VDC (30–60 VDC with battery)
	Max. Solar Charging Current	80 A
	Max. AC Mains Charging Current	80 A
	Max. Total Charging Current	80 A
	Max. PV Input Current ()	11 A
Physical & Mechanical	Dimensions ()	90 mm × 283 mm × 357 mm
	Net Weight	6.6 kg
	Display	2.5-inch LCD Display with responsive touch pad
	Environment Protection	Built-in anti-dust kit
	Communication Interface	RS232
Operating Environment	Operating Temperature	-10°C to +50°C
	Storage Temperature	-15°C to +60°C
	Relative Humidity	5% to 95% RH (Non-condensing)
	Manufacturer Warranty	4 Years (Terms & Conditions apply)

Ports & Interface Details

PV Input Terminals (PV+ / PV-): Screw terminals supporting up to 400VDC open-circuit voltage and up to 2,500W of solar panel capacity.
Battery Terminals (12V): Heavy-duty 12V positive and negative terminal connections supporting up to 80A charge/discharge flow.
AC Input Terminal: Connects to 230VAC utility mains with selectable voltage sensitivity switches.
AC Output Terminal: Pure sine wave 230VAC output terminal block for critical load circuits.
RS232 Communication Port: Serial data interface for PC connectivity, datalogging, and system diagnostics.
2.5″ Touch LCD Display: Displays real-time solar generation, battery voltage/percentage, load consumption wattage, grid voltage, and alarm fault codes.

Estimated Backup Runtimes in Bangladesh (with 12V 100Ah – 130Ah Battery)

Wi-Fi Router + Fiber ONU (~15W): Up to 40–50 hours.
Workstation (Desktop PC + 24" Monitor + Wi-Fi ~150W): ~4.5 to 5.5 hours.
Standard Household Load (2 Ceiling Fans + 4 LED Lights + Wi-Fi ~130W): ~5 to 6 hours.
Full Living Room (1 Inverter Fridge or TV + 2 Fans + 3 Lights ~250W): ~2.5 to 3.5 hours.

Frequently Asked Questions (FAQ)

Q1. What is the current price of the CrownMicro Xavier X-1.5KW-PF1 in Bangladesh?

The retail price is 29,000৳ (discounted from the regular price of 33,000৳).

Q2. Can the CrownMicro X-1.5KW run without a battery connected?

Yes. It features a battery-independent topology that allows it to power connected daytime AC loads directly from solar PV arrays and grid power without installing a battery bank.

Q3. What size battery does this inverter require?

It operates on a nominal 12V DC system. It is fully compatible with 12V 100Ah–230Ah tubular lead-acid batteries or 12V 100Ah lithium battery packs.

Q4. Can this inverter run desktop computers without restarting during load shedding?

Yes. It features an ultra-fast 10 ms transfer switch in PC mode, preventing personal computers, monitors, gaming consoles, and Wi-Fi routers from restarting during grid failure.

Q5. How many solar panels can I connect to this unit?

With a 400VDC max and 2,500W PV capacity, you can connect up to four 550W–600W commercial panels in series (), staying within the optimal MPPT operating range.
