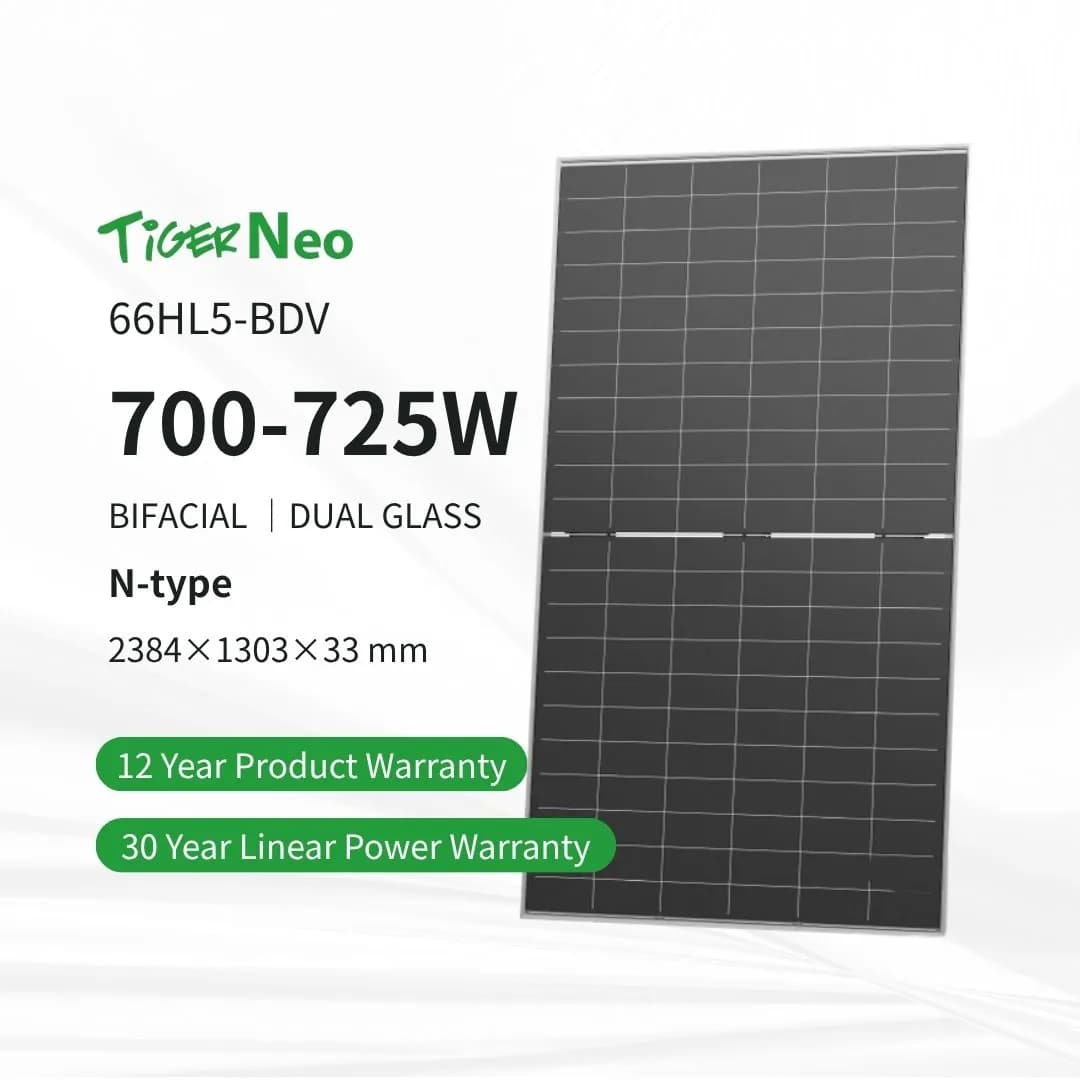

The Jinko 715W Tiger Neo JKM715N-66HL5-BDV-Z3-EU is an ultra-high-efficiency N-type TOPCon bifacial dual-glass solar module engineered for utility-scale ground mounts and high-yield commercial installations. Leveraging large-format G12 (210mm) half-cut cells, SMBB (Super Multi-Busbar) architecture, and Hot 3.0 technology, this module reaches up to 23.02% efficiency while delivering lower LCOE (Levelized Cost of Electricity) and higher IRR through rear-side albedo gains.

Technical Specifications:

Parameter	Specification
Module Type	N-Type Bifacial Dual Glass
Model Code	JKM715N-66HL5-BDV-Z3-EU
Rated Maximum Power (P_max)	715 W
Module Efficiency (STC)	23.02%
Voltage at P_max (V_mp)	40.77 V
Current at P_max (I_mp)	17.54 A
Open-Circuit Voltage (V_oc)	48.88 V
Short-Circuit Current (I_sc)	18.60 A
Power Sorting Tolerance	0 ~ +3%
Cell Orientation	132 half-cells (66 × 2)
Cell Type	N-type Monocrystalline (210mm G12)
Front / Rear Glass	2.0 mm Anti-Reflection + 2.0 mm Heat-Strengthened Glass
Frame Material	Anodized Aluminum Alloy
Junction Box & Connectors	IP68 Rated (3 bypass diodes); Stäubli MC4-EVO2 / JK03M
Dimensions (L × W ×H)	2384 × 1303 × 33 mm
Module Weight	~37.5 kg
Maximum System Voltage	1500 V DC (IEC)
Maximum Series Fuse Rating	35 A
Operating Temperature	-40°C to +85°C (Module $T_{98}$ max: 70°C)
Temperature Coefficient of P_max	-0.29%/°C
Temperature Coefficient of V_oc	-0.25%/°C
Temperature Coefficient of I_sc	+0.045%/°C
Bifaciality Factor	80 ± 5%

Note: STC specifications evaluated at 1000 W/m² Irradiance, 25°C Cell Temperature, AM 1.5.

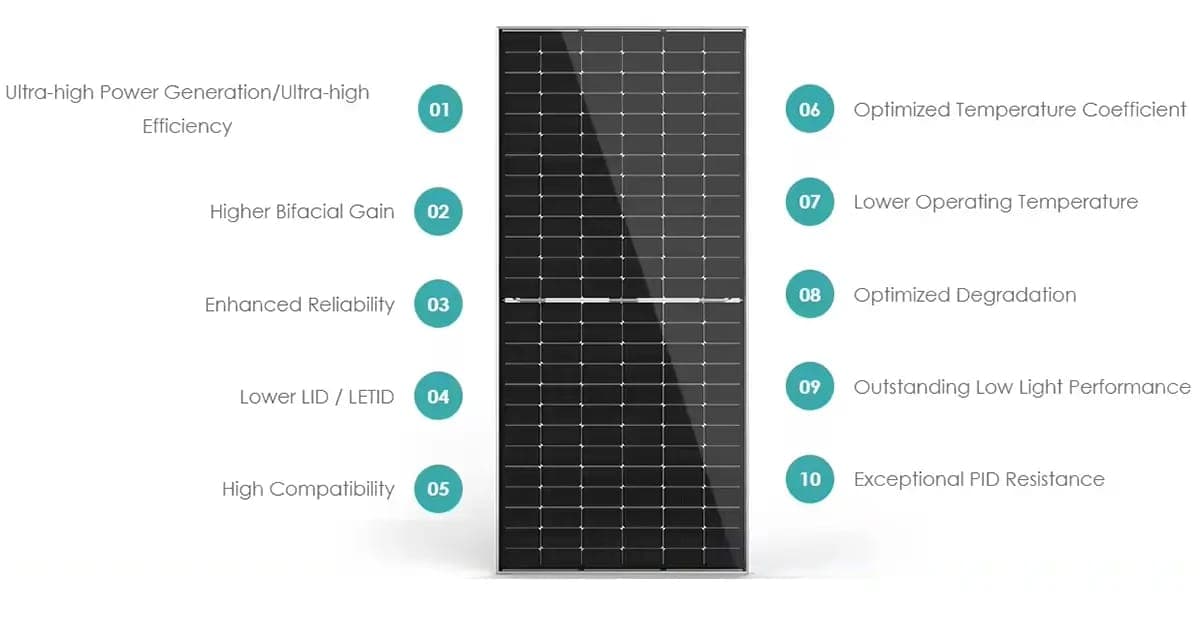

Advanced Technology

N-Type TOPCon & Hot 3.0: Minimizes recombination losses and ensures higher power conversion even in weak early-morning or late-afternoon irradiation.
SMBB Current Transport: Thinner, closely spaced wire interconnects shorten electrical paths, significantly lowering resistance and microcrack impacts.
Anti-PID & Dual-Glass Encapsulation: Robust dual-glass barrier blocks moisture, salt, and ammonia, eliminating Potential-Induced Degradation (PID) in tropical conditions.
Low Temperature Coefficient: Operating at $-0.29\%°C ensures lower thermal losses during scorching summer operating hours.

Warranty & Reliability

12-Year Product Warranty: Covers manufacturing defects and material integrity.
30-Year Linear Power Warranty: Guarantees 1.0% first-year degradation and 0.40% annual linear decline over 30 years (87.4%output at year 30).
Positive Tolerance Assurance: 0 ~+3% sorting guarantees you receive full rated wattage or higher.
Global Certifications: Compliant with IEC 61215:2021, IEC 61730:2023, ISO 9001, ISO 14001, and ISO 45001.

Frequently Asked Questions (FAQ)

Q1. What is the rated peak power of the Jinko JKM715N-66HL5-BDV?

The panel delivers a nominal maximum power output (P_max) of 715W under standard test conditions (STC) with a positive tolerance of 0 ~+3%.

Q2. What cell technology is used in this 715W module?

It features N-type monocrystalline TOPCon cells using 210mm (G12) wafers, SMBB (Super Multi-Busbar) architecture, and Hot 3.0 technology.

Q3. How much extra energy does the bifacial dual glass produce?

Depending on the albedo (reflectivity) of the ground surface (e.g., white membrane, gravel, or soil), the bifacial rear side can contribute an additional 5% to 25%+ energy gain.

Q4. What is the degradation rate over 30 years?

The module degrades no more than 1.0% in the first year and maintains a low annual degradation rate of $0.40\%$, retaining at least $87.4\%$ capacity at year 30.

Q5. Can this panel handle cyclonic winds and heavy mechanical pressure?

Yes. It features dual 2.0 mm heat-strengthened glass and an anodized aluminum frame rated to handle 5400 Pa front-side static load and 2400 Pa rear-side wind load.

Q6. Which inverters work best with this 715W panel?

With an I_mp of 17.54A and an I_sc of 18.60A, this module requires commercial string or utility central inverters with high-current MPPT inputs (18A per string)

Q7. Is this solar panel resistant to PID and ammonia?

Yes. Mass-production passivation control and impermeable dual-glass sealing provide high resistance to PID, salt spray, and industrial ammonia.
